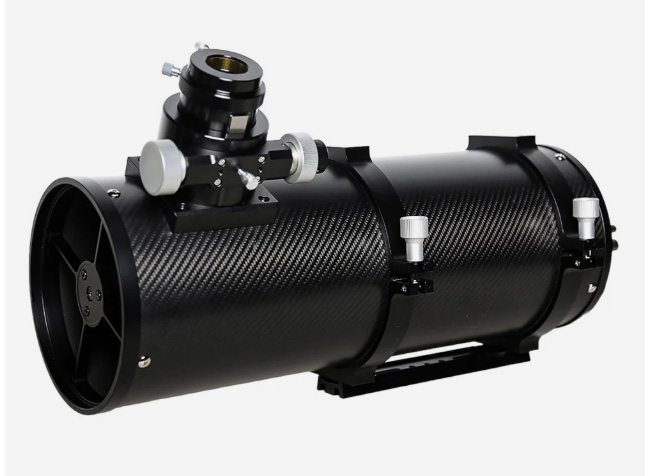

The GSO 6" f/4 Carbon Imaging Newtonian is a fast, compact reflector telescope designed for deep sky astrophotography. The newly updated linear bearing focuser is natively compatible with the ZWO EAF electronic focusing motor.
Compared to a common f/5 Newtonian, the photographic exposure with an f/4 system is 40% shorter, making it a great time saver. This instrument is ideal for astrophotography and when used with an additional coma corrector, will deliver sharp images across a large flat field.
The 2" linear bearing focuser is solid, precise and backlash free. It operates at two speeds due to the 10:1 reduction mechanism for an extra fine focusing adjustment, which is paramount for astrophotography and high resolution observations. No custom bracket is required to attach the ZWO EAF.
The secondary mirror is oversized in order to have a fully illuminated field and to avoid vignetting. It is collimatable by using 3 grub screws and the offset can be adjusted by using the central spring loaded screw. The primary mirror features a centre dot for quick and straightforward collimation.
Both mirrors are made of BK7 glass which has a low thermal expansion coefficient. That means that the precise optical surfaces of the mirrors remain the same while the glass cools down over the night.
The carbon-fibre tube is internally blackened to avoid internal reflection, enhance contrast and to absorb stray light.
| Optical design |
Newtonian reflector |
|
Objective diameter |
152.4 mm |
|
Focal length |
612 mm |
|
Focal ratio |
f/4 |
|
Secondary mirror |
62.5 mm (minor axis) |
|
Linear obstruction |
41.7 % |
|
Resolving power |
0.77 arc second |
|
Stellar limiting magnitude |
12.9 |
|
Max. magnification |
300 x |
|
Light gathering power |
474 times the human eye |
|
Mount attachment |
Tube rings on Vixen or Losmandy style bar |
|
Focuser |
Linear bearing dual speed (10:1) |
|
Tube weight |
3.73 kg |
|
Tube length |
500 mm |
|
Tube diameter |
180 mm |
|
SKU |
GSN550C |
