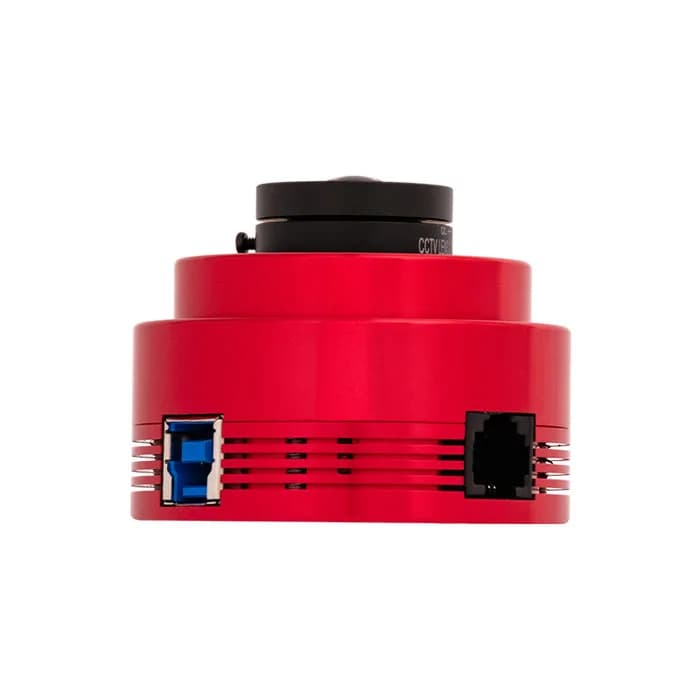

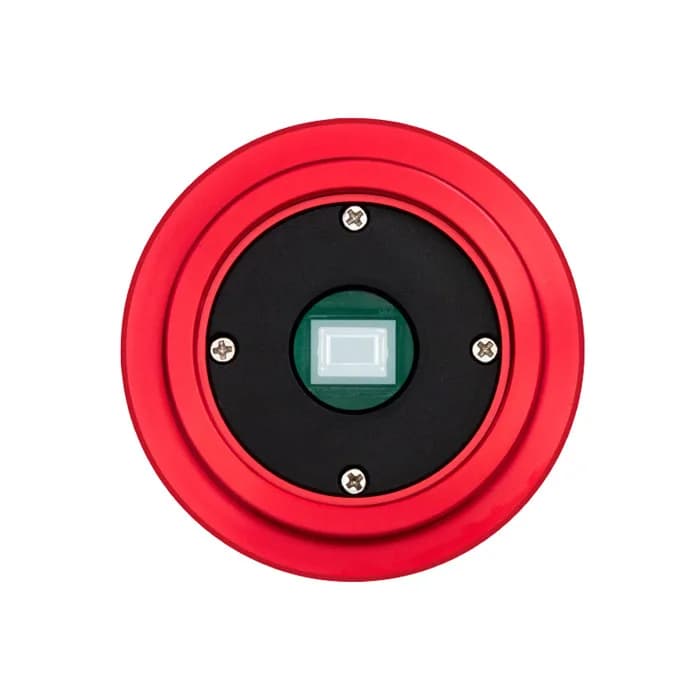

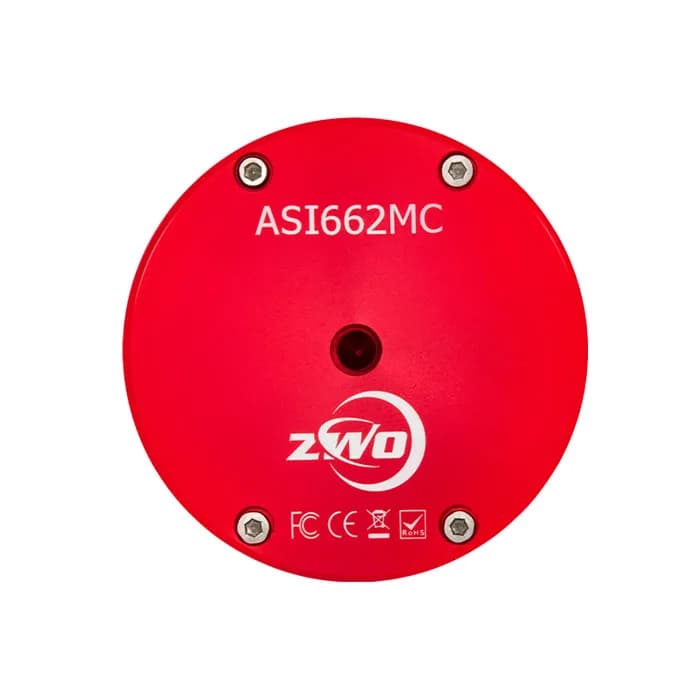

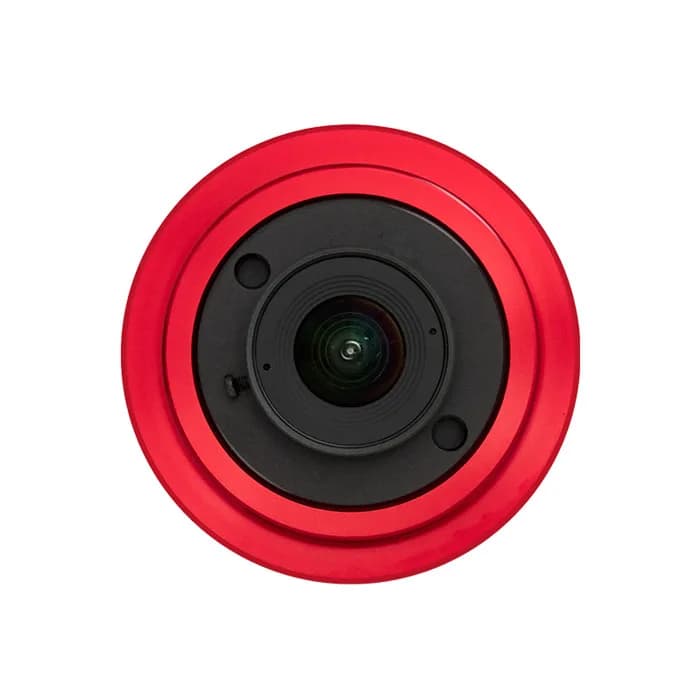

ZWO ASI662MC Camera
Capture the Moon, planets, and deep-sky targets with the ZWO ASI662MC Camera. This astronomy camera is suited to planetary imaging and guided deep-sky work when paired with the right telescope and software.
Need help choosing the right setup? Call or WhatsApp Tejraj & Co. and we will match this item with suitable mounts, eyepieces, or imaging accessories.
SKU Number | ZWO-ASI662MC |
|---|---|
Model Number | ASI662MC |
Imaging Camera Series | ZWO ASI662 |
| Color, Mono or Polarized Camera | Color |
Cooled or Uncooled Camera | Uncooled |
Pixel Size in Microns | 2.9 |
Pixel Array & Resolution | 1920 x 1080 (2.1 MP) |
Camera Sensor Manufacturer | Sony |
Sensor Type - CMOS, CCD | CMOS |
Sensor Size - APS-C, etc. | 1/2.8" |
Front or Back Illuminated Sensor | BSI (Back Illuminated |
Sensor Dimensions (mm x mm) | 5.6 x 3.1 |
Sensor Diagonal (mm) | 6.45 |
Includes Guide Sensor? | No |
Includes Anti-Dew Heater? | No |
Includes Humidity Sensor? | No |
Built-in Image Buffer? | Yes: 256MB DDR3 Memory |
Peak Quantum Efficiency (QE) | 91% |
Native Bit Depth | 12 |
Max FPS or Full Frame Rate | 107.6 |
ROI (Region of Interest) Support? | Yes |
Full Well | 38.2ke |
Amp Glow Control | Zero Amplifier Glow |
Readout Noise | 0.8e |
Minimum Exposure | 32μs |
Maximum Exposure | 2000s |
Shutter | Electronic Rolling Shutter |

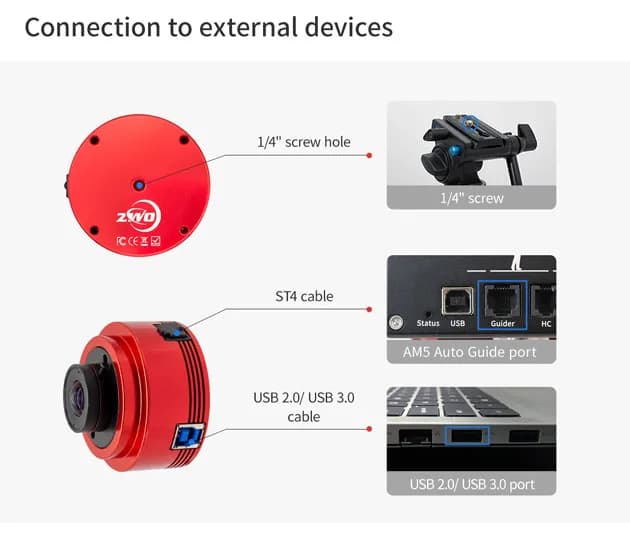

ST-4 Type Guide Port? | Yes |
Native Back Focus (mm) | 12.5 |
Camera Window | IR |
Computer Interface | USB 3.0 or USB 2.0 |
Telescope Interface Thread Type (with proper adapters) | M42 |
On Camera Storage/Non-Volatile Memory | 192k |
Working Temperature | -5℃~50℃ |
Storage Temperature | -10℃~60℃ |
Working Relative Humidity | 0-80% |
Camera Dimensions | 5.57mm x 3.13mm |
Camera Weight (lb.) | 0.3 |
OS Compatibility | WIN7/8/10 (32 and 64-bit), Linux, Mac |
| Warranty | ZWO - 2 Years |
