Manufacturers & Suppliers of Astronomical Telescopes Since 1976
Image 1 of 8

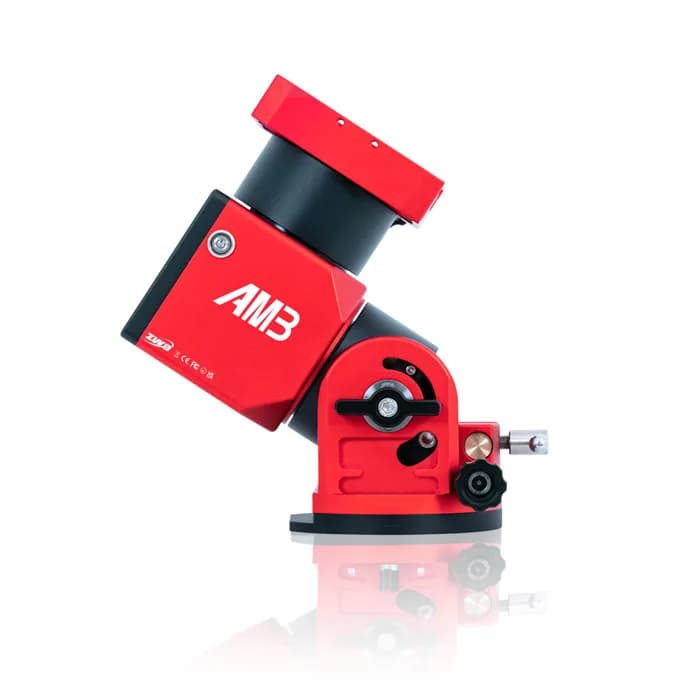

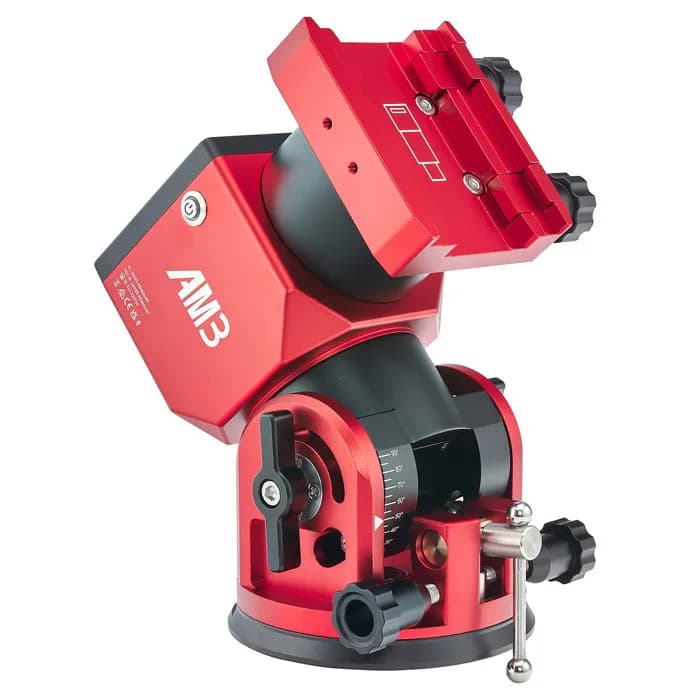

ZWO AM3N Harmonic EQ GoTo
Sold Out ₹ 147000 + 18% GST
| Mount type: | German Equatorial mount |
| Mount mode: | Equatorial mode / Altazimuth mode |
| Drive: | Strain wave gear + Synchronous belt (Reduction ratio 300/1) |
| Periodic error: | <±15" |
| PE duration: | 288 s |
| Drive (RA): | NEMA35 stepper motor + Model No. 14 (Reduction ratio 100/1) + brake |
| Drive (DEC): | NEMA35 stepper motor + Model No. 14 |
| Load capacity: | 8 kg without counterweight, 13 kg with counterweight |
| Weight | 3.9kg |
| Latitude adjustment range: | 0°-90° |
| Azimuth angle adjustment range: | ±6° |
| Dovetail: | Losmandy & Vixen (500 g) |
| Interface thread of counterweight shaft: | M12 |
| Stepper motor resolution: | 0.17" |
| Max slew speed: | 6°/s |
| Slew rate: | 0.5x, 1x, 2x, 4x, 8x, 20x, 60x, 720x, 1440x |
| Power port: | DC 5.5-2.1 (12 V, 5A) |
| Power consumption: | 12 V / 0.5 A (standby), 12 V / 0.5 A (tracking), 12 V / 1.7 A (GOTO) (1.3A-Heavy Load Mode) |
| Guide port: | ST-4 |
| Communication interface: | USB/WiFi/Bluetooth |
| Zero position: | Mechanical |
| Power failure protection: | Yes |
| Operating temperature: | -15 °C to 40 °C |
| Power Failure Protection | YES |
| Mount Base Dia | 122mm |
