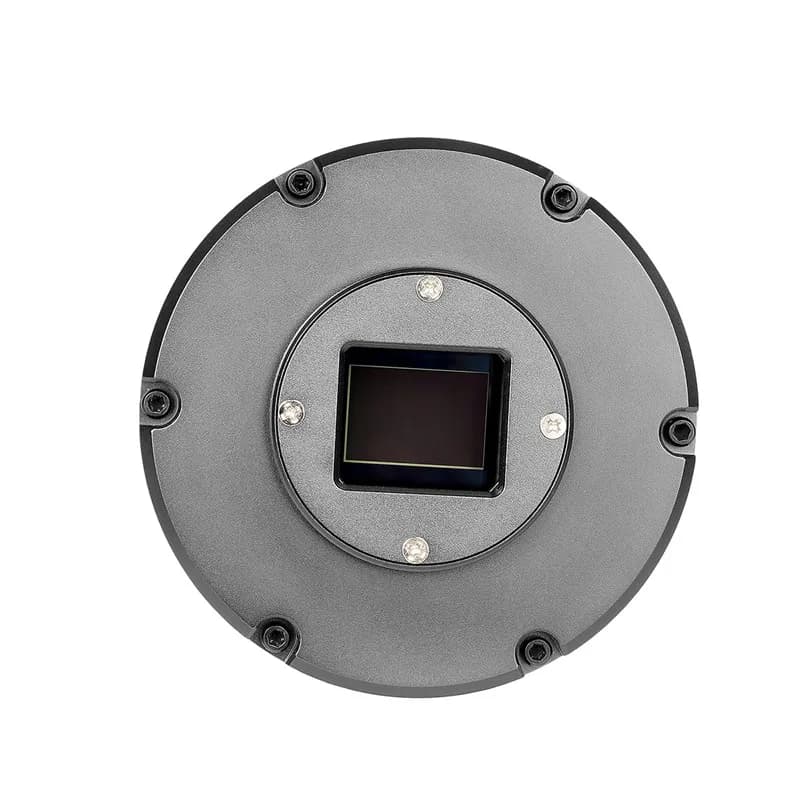

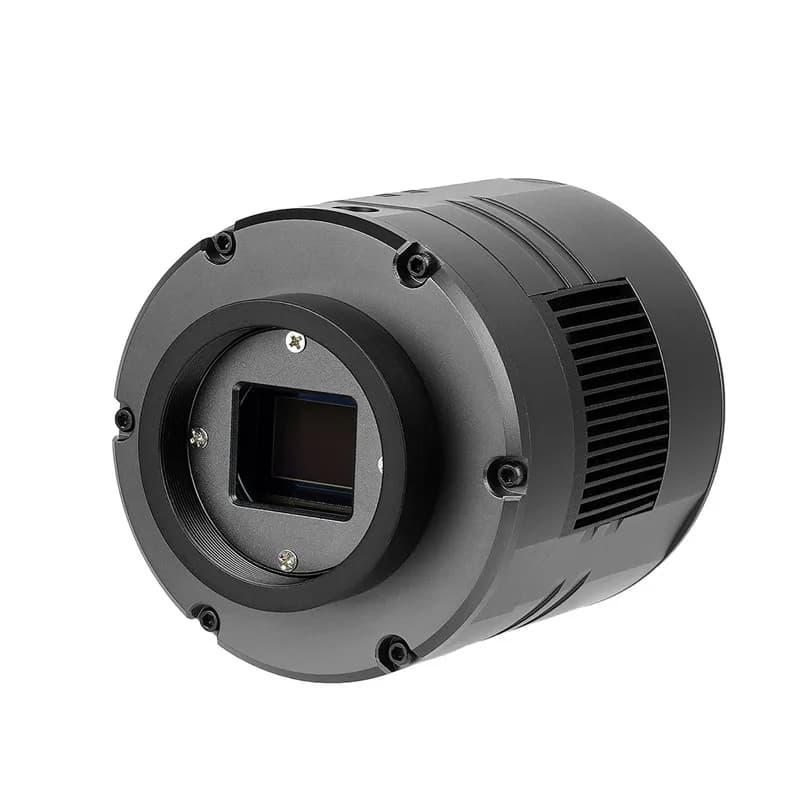

SV605CC OSC Cooled Camera MIX533 for Deep Space Astrophotography
SV605CC is a 1-inch color deep space camera with 3.76um pixel size, better resolution and 80%+quantum efficiency. It can get good imaging in light polluted environment with double narrowband filters.
Cooling System-Thanks to the two-stage TEC cooling,the SV605CC can lower the CMOS sensor temperature to 30 degrees Celsius below amboent temperature,which can greatly reduce dark current generation anf sensor noise even during longer exposure times.
Support system-SV605CC camera works with Windows,Linux,Mac OS,Chrome OS and Raspberry Pi systems by running AstroDMx Capture. For Windows system,Also support Sharpcap,N.I.N.A,TheSkyX and other softwares run throuth ASCOM platform by suing ASCOM driver.
SV605CC is the deep space camera of SVBONY brand. It is designed with SONY IMX533 color SMOS sensor,which is recommended by amateur asreonomers.Here are some highlights:
Back-illuminated sensor--improving sensitivity and reducing noise
1'' format with 3.76 um pixel size--ideal for many types of telescopes
14-bit ADC--giving high dynamic range of 13 stops.
An impressive 50ke-full well capacity--helping to reduce the issue of,for example,saturated stars.
HCG mode--When set the gain at 120 or higher,the HCG mode is autonatically enabled,and reduce the read noise to even lover levels without loss the dynamic range.
Exceptuinal low-illumination performance of SNR1s:0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 3.76um.This makes the IMX533 ieal for security camera market applicatiuons that require low illumination performance.
The IMX533 sensor adopts the 1'' format and provides the necessary number of pixels for true 4k output at 120 frames per second(W/ ADC 10-bit output mode,the SV605CC can run up to 20fps at 4k format when used with USB3.0)
Warranty : 1 year Factory Warranty
The Buyer has to bear the cost of sending the package to China.
SVBONY will bear the cost of returning the package back to India.
Upon Return of package, Customs Duty to be paid in India by the customer if any.
